YFL045

●O.D: Φ45(h7)mm;
●I.D: Φ24.5(h7)mm, or upon mounting requirement;
●Supply voltage: DC12/24/48,AC110V/220V;
●Stack length: customized;
●Finshed stator O.D for easy assembly;

EMAIL


What's a frameless motor kits?

A frameless motor does not have a physical frame or housing. Instead, rotor and stator are delivered separately – without bearings and motor shaft – and are only connected when the components are assembled.

The lack of a frame allows for greater flexibility in design and installation, as well as a reduction in weight and size, such as in robotic or surveillance systems, and also commonly in portable equipment, like electric tools and medical devices, where a more compact design is desirable.



1. Features and benefits:










  • 1.1. High copper slot fill for highest torque density

  • 1.2. 180℃ winding capability

  • 1.3. Direct Drive motor performance(no gearbox, no belts)

  • 1.4. High pole count

  • 1.5. Zero backlash

  • 1.6. Multiple strand winding for lower thermal rise

  • 1.7. Banded rotor to lock rare earth magnets

  • 1.8. Ultra-flat profile

  • 1.9. Lower mass

  • 1.10. Big bore for cable

  • 1.11. Skewed lamination for Lowest cogging torque

  • 1.12. Lower End extension for compact

  • 1.13. Varied sizes, torque/speed and supply voltage

  • 1.14. Optimized Back EMF

  • 1.15. Hall feedback and thermal sensor optional

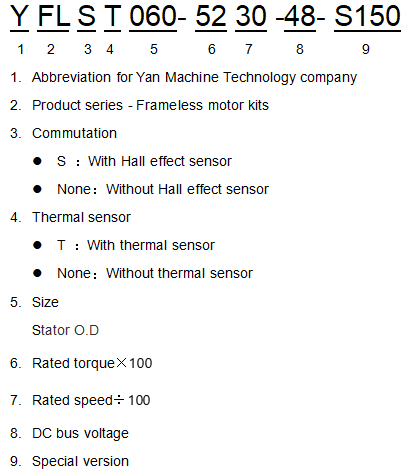

2. Ordering code:

ordering code.png

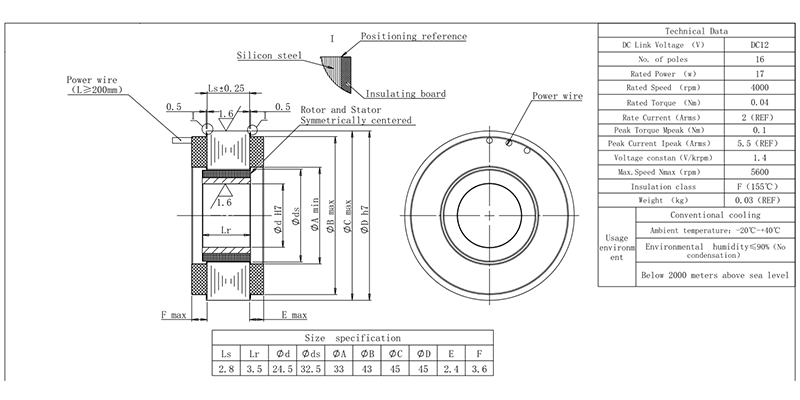

3. Dimensions and specifications


4. Customized motor for solving E-Magnetic Model

4.1.  Analyzing load torque and speed.

4.2.  Ask an engineer, our experts will work with you to solve your most challenging applications.

4.3.  Confirm the specification and drawing.

4.4.  Place an order.

5. FAQS and download

5.1. General technical data

5.2. Package and transportation

5.3. Assembly manuals

5.4. Whitepaper

5.5. Troubleshooting

5.6. Storage

5.7. Certifications
